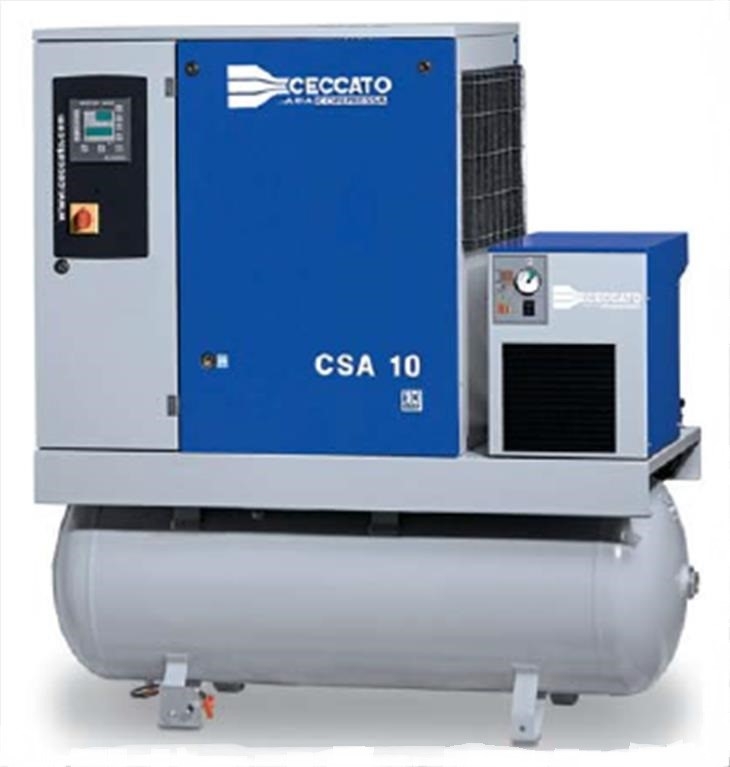

Ceccato Rotary Screw Air Compressor CSA 10/8 FF

CECCATO CSA 10/8 FF (7.5 kw) oil injected rotary screw air compressor, 10hp, 8bar, 116psi, 40.7 cfm, full featured unit including dryer, pre filter and post filter on manifold with bypass on 500ltr receiver

ES 3000 controller capable of managing all operations regarding the use of the compressor; Pressure control, loads, unloads, stops and starts, weekly / daily planner and phase control.

â€¢Whisper quiet sound level of 64 dBa at 1 metre

Air inlet pre filter

100% working cycle (no cool down period required)

Oil content passed into the line at only 5 parts per million

Can easily be mounted & operated in-doors

Central condensate collection point (Auto Drain) removing condensate using a programmable electronic system

Oversized dryer

Dryer includes pre filter and after filter on by-pass manifold

Specification:

Capacity 40.7 cfm

Max operating pressure 8 Bar / 116 psig

Min operating pressure 4.5 bar / 65 psig

Rated Shaft Power 7.5 kw

Full Load Amps 19 A (use 25A AM D fuse)

Voltage 415/3/50 hz

Type of Cooling Air cooled

Noise level 64 dBa at 1 metre

Air discharge Connection Â¾â€ BSP

Dimensions (L x W x H) mm 1935 x 655 x 1680

Weight 385 kg

Code: CSA10/8FF

RRP (incl. GST):
$
