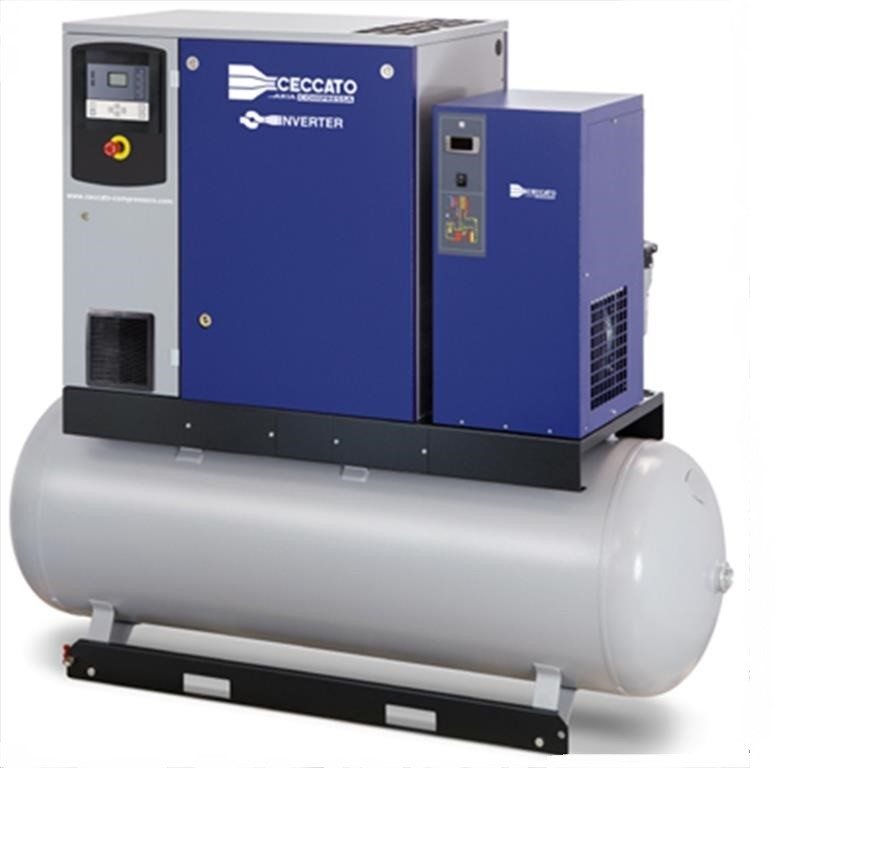

Ceccato Rotary Screw Air Compressor DRA 20/8 IVR

CECCATO DRA 20/8 IVR 500 D (15 kw) oil injected rotary screw air compressor, 20hp, 9 to 77 cfm, full featured unit including dryer, pre filter and post filter on 500ltr receiver.

ES 4000 controller capable of managing all operations regarding the use of the compressor; Pressure control, loads, unloads, stops and starts, weekly / daily planner and phase control.

Whisper quiet sound level of 65 dBa at 1 metre

DIRECT DRIVE - Built in frequency converter with low harmonic distortion for compressor speed variation and ramped motor start up, including standard RFI filters.

100% working cycle (no cool down period required)

Can easily be mounted & operated in-doors

Central condensate collection point (Auto Drain) removing condensate using a programmable electronic system

Oversized dryer - Dryer includes pre filter and after filter

Specification:

Capacity 9 to 77 cfm

Max operating pressure 12 Bar / 174 psig

Min operating pressure 6 bar / 87 psig

Rated Shaft Power 15 kw

Full Load Amps 32A (use 35A D fuse)

Voltage 415/3/50 hz

Type of Cooling Air cooled

Noise level 65 dBa at 1 metre

Air discharge Connection Â¾â€ BSP

Dimensions (L x W x H) mm 1935 x 655 x 1680

Weight 465 kg

Code: DRA20/8IVR

RRP (incl. GST):
$
