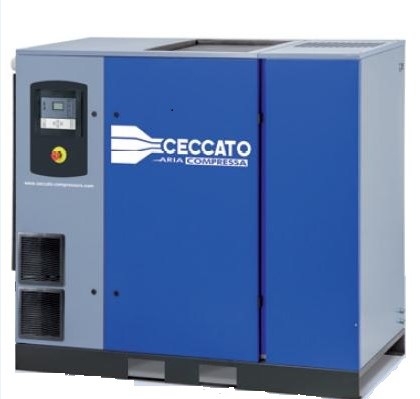

Ceccato Rotary Screw Air Compressor DRB 50 IVR

CECCATO DRB 50 IVR (37kw VSD) VARIABLE Speed Drive (VSD) oil injected rotary screw air compressor rated at 36 - 216 cfm @ 5,5 â€“ 12.5 bar operating pressure

ES 4000 controller capable of configuring the operating system, weekly program with two load types, percentage calculation of operating periods.

Electric motor IP55 Class F â€“ DIRECT Driven according to CEI EN 60034-1

Built in frequency converter with low harmonic distortion for compressor speed variation and ramped motor start up, including standard RFI filters.

Integrated inverter conforms to current standards of electromagnetic compatibility

Air oil separator with low power loss while removing compressor lubricant from compressed air stream.

Specification:

Capacity 36 â€“ 216 cfm

Max operating pressure 12.5 Bar / 181 psig

Min operating pressure 5.5 bar / 80 psig

Shaft Power Full Load 37 kw

Full Load Amps 88 A (use 100A type D fuse)

Min Cable size 4 x 25mmÂ²

Voltage 415/3/50 hz

Type of Cooling Air cooled

Noise level 71 dBa at 1 meter

Air discharge Connection 1Â¼â€ BSP

Dimensions (L x W x H) mm 1350 x 780 x 1580

Weight 514 kg

Code: DRB50IVR
