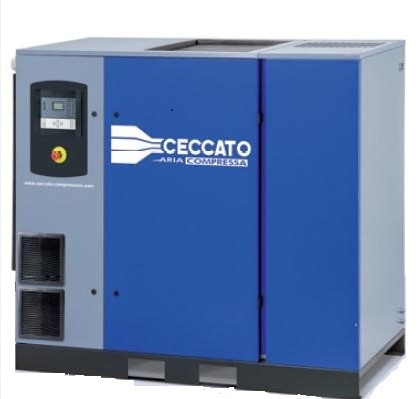

Ceccato Rotary Screw Air Compressor DRD 30 IVR PM

CECCATO DRD 30 IVR PM (22kw VSD PM) VARIABLE Speed Drive (VSD) with PERMANENT MAGNET OIL COOLED MOTOR - oil injected rotary screw air compressor rated 34 - 135 cfm @ 5.5 â€“ 12.5 bar operating pressure

ES 4000 TOUCH controller - unique touch control unit, professionally programmed for intelligent monitoring and connectivity

Electric motor - Patented oil cooled permanent magnetic drive train designed to give long term and reliable service

Inverter - Market proven design specially for air compressor regulation, brings the most matched air supply with minimum

Quick access to service. Suction cooling air flow supports visual inspection with open-door

Air oil separator with low power loss while removing compressor lubricant from compressed air stream.

Specification:

Capacity 34 â€“ 135 cfm

Max operating pressure 12.5 Bar / 181 psig

Min operating pressure 5.5 bar / 80 psig

Shaft Power Full Load 22 kw

Full Load Amps 48 A (use 80A type D fuse)

Min Cable size 4 x 25mmÂ²

Voltage 415/3/50 hz

Type of Cooling Air cooled

Noise level 73 dBa at 1 meter

Air discharge Connection 1â€ BSP

Dimensions (L x W x H) mm 1250 x 950 x 1180

Weight 321 kg

Code: DRD30 IVR PM

RRP (incl. GST):
$
